Computational Engineering · 724U
Formula Student Wheel Hub FEA and Optimisation

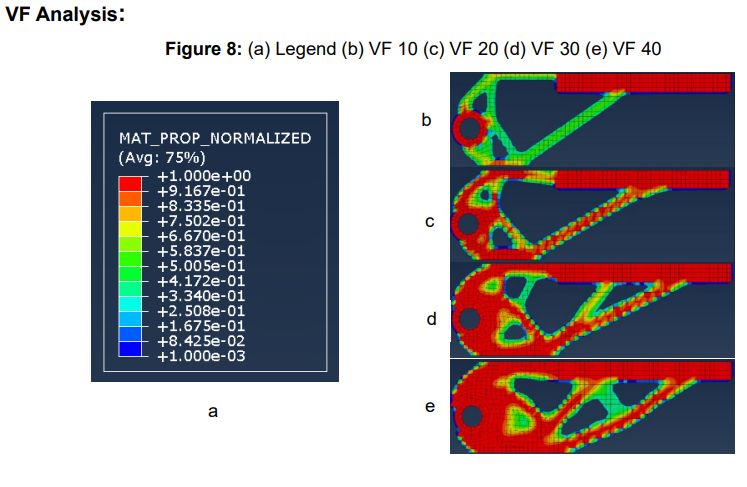

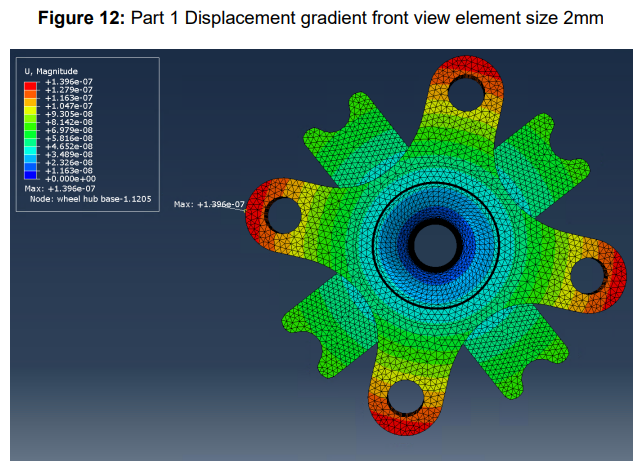

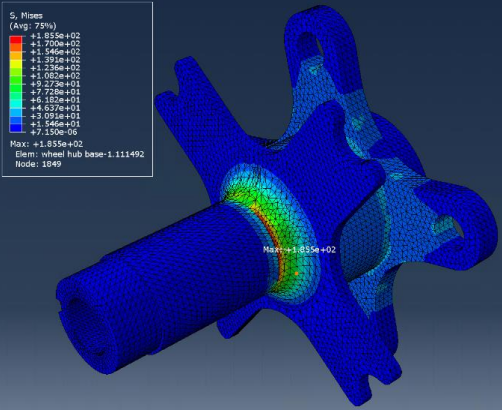

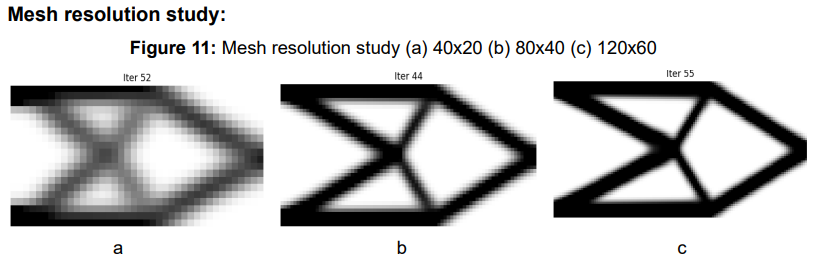

This individual computational engineering project applied finite element analysis and topology optimisation to a 3D wheel hub developed for the Queen Mary Formula Student 2024 car. I used h-refinement to test mesh convergence from 4 mm to 1.2 mm, compared linear and quadratic elements, investigated stress sensitivity around fillets and assessed the converged design against the aluminium yield strength. The study then explored volume fraction and mesh resolution to reduce mass while retaining a practical structural load path.
- Role
- Individual FEA, mesh-convergence and optimisation study
- Software / tools
- Abaqus CAE and CAD
- Completed
- December 2025
Project media
Interactive STL model
Drag to rotate and scroll or pinch to zoom.
Project PDF
